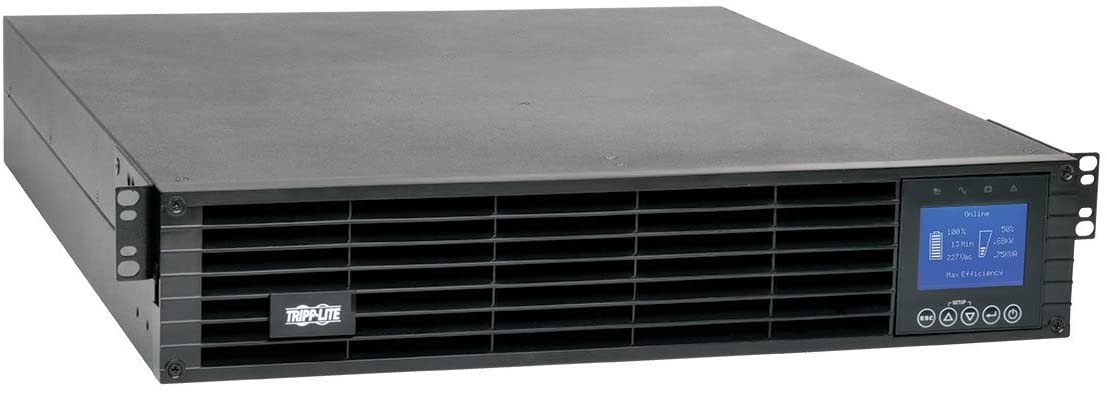

Tripp Lite SmartOnline 208/230V 1kVA 900W Double-Conversion UPS, 2U, Extended Run

The Tripp Lite SUINT1000LCD2U SmartOnline® 208/230V 1kVA 900W On-Line Double-Conversion UPS provides battery backup and AC power protection against blackouts, brownouts, power surges and line noise that can damage electronics or destroy data. It continuously regulates AC output within 2% of the selected nominal output voltage with zero transfer time from online to battery mode.

Operating with a high 93% line mode efficiency, the ENERGY STAR-certified SUINT1000LCD2U saves you money by meeting strict EPA guidelines. Managing the SUINT1000LCD2U is simplified through the interactive front-panel LCD interface, which displays operating conditions and diagnostic data, such as load and battery levels. You can set power strategies to reflect your protection priorities, whether it’s precise power quality for sensitive systems or the highest possible electrical efficiency.. Featuring six C13 outlets (four of them in two switchable two-outlet load banks) and a C14 input, the SUINT1000LCD2U has an internal battery that provides 12.3 minutes of support at half load and 4.7 minutes at full load. Adding external battery packs, such as BP24V36-2US (sold separately), provides extended runtime.

EMI/RFI noise filtering improves your equipment’s performance and prevents damage. A 627-joule surge suppression rating protects your equipment from harmful power surges. Adding an optional Tripp Lite network management card, such as WEBCARDLX and SNMPWEBCARD, permits remote management of the UPS, including reboots and activity logs.

Tripp Lite SUINT1000LCD2U SmartOnline Features,

Protects Mission-Critical Rack-Mounted Equipment

• Provides fully regulated sine wave AC output for critical voice, data, medical and industrial IT applications
• +/-2% voltage regulation in online and battery modes
• Selectable 200/208/220/230/240V output voltage
• 6 C13 outlets, including 4 in 2 switchable 2-outlet load banks
• C14 input
• 627-joule surge suppression rating

Highly Customizable

• Selectable auto-restart from 0 to 60 sec. after AC power is restored
• Selectable minimum battery charge level before auto-restart
• Schedule system reboot if USB signal from connected device is lost
• Set overload thresholds and low battery levels for alert and shutdown

Reliable Battery Backup with Expandable Runtime

• Supports half load for 12.3 min. and full load for 4.7 min.
• Internal batteries designed for hot-swap field replacement
• Expandable runtime with optional external battery packs, such as Tripp Lite’s BP24V36-2US
• Battery-independent restart ensures automatic power-up after lengthy power outages

5 Power Strategies

• Auto Adaptive enables high efficiency operation as necessary for ideal equipment protection
• Max Efficiency favors economy operation with high 96% efficiency
• Max Quality favors on-line, double-conversion mode, maintaining +/-2% output voltage regulation and zero transfer time
• Frequency Regulation and Frequency Conversion enable +/-0.05 Hz output regulation for selected frequency (50/60 Hz)
