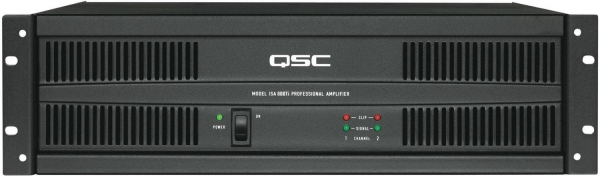

Name: QSC ISA800Ti Power Amplifier
Brand: DXB Machine
SKU: 9758
Availability: InStock
Rating: 5 (1 reviews)

8 ohms 20 Hz-20 kHz 0.1% THD	185W	260W	450W	800W	185W	260W	450W
4 ohms 20 Hz-20 kHz 0.1% THD	280W	425W	650W	1300W	280W	425W	650W
2 ohms 1 kHz 1% THD	430W	700W	1200W	2000W	430W	700W	1200W
	DIRECT POWER, STEREO MODE
70V 20 Hz-20 kHz +0/-0.3 dB 0.5% THD	–	–	–	1500W	–	–	–
	XF OUTPUT POWER, STEREO MODE
70V or 100V 50 Hz-16 kHz 0.5% THD	–	–	–	–	300W	500W	800W
25V 50 Hz-16 kHz 0.5% THD	–	–	–	–	200W	300W	500W
	BRIDGED MONO MODE
8 ohms 1 kHz 0.1% THD	600W	900W	1500W	2800W	600W	900W	1500W
4 ohms 1 kHz 1% THD	830W	1400W	2400W	4000W	830W	1400W	2400W
	XF OUTPUT POWER, BRIDGED MONO MODE
140V or 200V 50 Hz-16 kHz 0.5% THD	–	–	–	–	600W	1000W	1600W
Signal to Noise (20 Hz-20 kHz)	100 dB	100 dB	100 dB	100 dB	100 dB	100 dB	100 dB
Distortion (SMPTE-IM)	Less than 0.01%	Less than 0.01%	Less than 0.02%	Less than 0.01%	Less than 0.01%	Less than 0.01%	Less than 0.02%
Input Sensitivity @ 8 ohms	1.15v (+3.4 dBu)	1.07v (+2.8 dBu)	1.07v (+2.8 dBu)	1.24v (+4.1 dBu)	1.15v (+3.4 dBu)	1.07v (+2.8 dBu)	1.07v (+2.8 dBu)
Voltage Gain @ 8 ohms	33.4x (30.5 dB)	44.7x (33 dB)	56.2x (35 dB)	64.0x (36.1 dB)	33.4x (30.5 dB)	44.7x (33 dB)	56.2x (35 dB)
Output Circuitry	Class AB	Class AB	Class H	Class H, 3 Tier	Class AB	Class AB	Class H
THX Approved	–			–	–	–	–
Weight – Net	36 lbs (16.3 kg)	42 lbs (19 kg)	47 lbs (21.3 kg)	68 lbs (30.8 kg)	44 lbs (20.0 kg)	49 lbs (22.3 kg)	57 lbs (26 kg)
Weight – Shipping	42 lbs (19.1 kg)	48 lbs (22 kg)	53 lbs (24.0 kg)	77 lbs (34.4 kg)	50 lbs (22.7 kg)	55 lbs (25 kg)	63 lbs (28.6 kg)
	ALL MODELS
Distortion (Typical) 20 Hz-20 kHz: 10 dB below rated power 1.0 kHz and below: full rated power	Less than 0.03% THD, 4 ohms and 8 ohms Less than 0.03% THD, 4 ohms and 8 ohms
Frequency Response 10 dB below rated output power	ISA 280, 450, 750 and 1350: 20 Hz-20 kHz, +0/-1 dB; -3 dB points: 5 Hz and 50 kHz				ISA 300Ti, 500Ti and 800Ti: Direct outputs: -3 dB @ 50 Hz, -0.5 dB @ 20 kHz; XF outputs: 50 Hz-16 kHz, +1/-3 dB
Damping Factor (direct outputs)	Greater than 200 at 8 ohms, ISA 1350 greater than 250
Output Regulation (isolated outputs)	Less than 1.5 dB
Input Impedance	10 k ohms unbalanced, 20 k ohms balanced
Input Clipping	10 Vrms (+22 dBu)
Cooling	Continuously variable speed fan, back-to-front air flow
Connectors, each channel	Input: Active balanced; 3-pin Euro-style detachable terminal block and XLR (pin 2+) Output: Covered barrier strips DataPort V2: HD-15 connector
Controls	Front: AC switch Rear: Ch. 1 and Ch. 2 gain knobs, 10-position DIP switch
Indicators	PWR-ON: Green LED; SIGNAL: Green LED (1 per channel); CLIP: Red LED (1 per channel)
Dimensions	19″ (48.3 cm) rack mounting, 5.25″(13.3cm) tall (3 rack spaces), 15.9″ (40 cm) deep (from front mounting rails)
Amplifier Protection	Full short circuit, open circuit, thermal, ultrasonic, and RF protection; Stable into reactive or mismatched loads
Power Requirements	120, 230, VAC, 50-60 Hz
Load Protection	On/off muting; Triac crowbar: ISA 750, 1350 and 800Ti; AC coupling: ISA 280, 300Ti, 450 and 500Ti

Product Name

QSC ISA800Ti Power Amplifier

System

Output Power

1200 W

Frequency

ISA 300Ti, 500Ti and 800Ti: Direct outputs: -3 dB @ 50 Hz, -0.5 dB @ 20 kHz; XF outputs: 50 Hz–16 kHz, +1/-3 dB

Woofer Size

Weight

12.97 Kg

Click to enlarge

Previous product

QSC RMX 850a Two-Channel Power Amplifier

Back to products

Next product

Sonos ONEG1UK1 (White) One Voice Controlled Smart Speaker

Buy now

Actual Stock Can Be Confirmed After Placing The Order

Compare

Add to wishlist

Categories: Amplifiers, QSC

Description
Reviews (0)
Shipping & Delivery
FEATURE

Description

8 ohms 20 Hz-20 kHz 0.1% THD	185W	260W	450W	800W	185W	260W	450W
4 ohms 20 Hz-20 kHz 0.1% THD	280W	425W	650W	1300W	280W	425W	650W
2 ohms 1 kHz 1% THD	430W	700W	1200W	2000W	430W	700W	1200W
	DIRECT POWER, STEREO MODE
70V 20 Hz-20 kHz +0/-0.3 dB 0.5% THD	–	–	–	1500W	–	–	–
	XF OUTPUT POWER, STEREO MODE
70V or 100V 50 Hz-16 kHz 0.5% THD	–	–	–	–	300W	500W	800W
25V 50 Hz-16 kHz 0.5% THD	–	–	–	–	200W	300W	500W
	BRIDGED MONO MODE
8 ohms 1 kHz 0.1% THD	600W	900W	1500W	2800W	600W	900W	1500W
4 ohms 1 kHz 1% THD	830W	1400W	2400W	4000W	830W	1400W	2400W
	XF OUTPUT POWER, BRIDGED MONO MODE
140V or 200V 50 Hz-16 kHz 0.5% THD	–	–	–	–	600W	1000W	1600W
Signal to Noise (20 Hz-20 kHz)	100 dB	100 dB	100 dB	100 dB	100 dB	100 dB	100 dB
Distortion (SMPTE-IM)	Less than 0.01%	Less than 0.01%	Less than 0.02%	Less than 0.01%	Less than 0.01%	Less than 0.01%	Less than 0.02%
Input Sensitivity @ 8 ohms	1.15v (+3.4 dBu)	1.07v (+2.8 dBu)	1.07v (+2.8 dBu)	1.24v (+4.1 dBu)	1.15v (+3.4 dBu)	1.07v (+2.8 dBu)	1.07v (+2.8 dBu)
Voltage Gain @ 8 ohms	33.4x (30.5 dB)	44.7x (33 dB)	56.2x (35 dB)	64.0x (36.1 dB)	33.4x (30.5 dB)	44.7x (33 dB)	56.2x (35 dB)
Output Circuitry	Class AB	Class AB	Class H	Class H, 3 Tier	Class AB	Class AB	Class H
THX Approved	–			–	–	–	–
Weight – Net	36 lbs (16.3 kg)	42 lbs (19 kg)	47 lbs (21.3 kg)	68 lbs (30.8 kg)	44 lbs (20.0 kg)	49 lbs (22.3 kg)	57 lbs (26 kg)
Weight – Shipping	42 lbs (19.1 kg)	48 lbs (22 kg)	53 lbs (24.0 kg)	77 lbs (34.4 kg)	50 lbs (22.7 kg)	55 lbs (25 kg)	63 lbs (28.6 kg)
	ALL MODELS
Distortion (Typical) 20 Hz-20 kHz: 10 dB below rated power 1.0 kHz and below: full rated power	Less than 0.03% THD, 4 ohms and 8 ohms Less than 0.03% THD, 4 ohms and 8 ohms
Frequency Response 10 dB below rated output power	ISA 280, 450, 750 and 1350: 20 Hz-20 kHz, +0/-1 dB; -3 dB points: 5 Hz and 50 kHz				ISA 300Ti, 500Ti and 800Ti: Direct outputs: -3 dB @ 50 Hz, -0.5 dB @ 20 kHz; XF outputs: 50 Hz-16 kHz, +1/-3 dB
Damping Factor (direct outputs)	Greater than 200 at 8 ohms, ISA 1350 greater than 250
Output Regulation (isolated outputs)	Less than 1.5 dB
Input Impedance	10 k ohms unbalanced, 20 k ohms balanced
Input Clipping	10 Vrms (+22 dBu)
Cooling	Continuously variable speed fan, back-to-front air flow
Connectors, each channel	Input: Active balanced; 3-pin Euro-style detachable terminal block and XLR (pin 2+) Output: Covered barrier strips DataPort V2: HD-15 connector
Controls	Front: AC switch Rear: Ch. 1 and Ch. 2 gain knobs, 10-position DIP switch
Indicators	PWR-ON: Green LED; SIGNAL: Green LED (1 per channel); CLIP: Red LED (1 per channel)
Dimensions	19″ (48.3 cm) rack mounting, 5.25″(13.3cm) tall (3 rack spaces), 15.9″ (40 cm) deep (from front mounting rails)
Amplifier Protection	Full short circuit, open circuit, thermal, ultrasonic, and RF protection; Stable into reactive or mismatched loads
Power Requirements	120, 230, VAC, 50-60 Hz
Load Protection	On/off muting; Triac crowbar: ISA 750, 1350 and 800Ti; AC coupling: ISA 280, 300Ti, 450 and 500Ti

Reviews (0)

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Shipping & Delivery

FEATURE

Product Name	QSC ISA800Ti Power Amplifier
System	-
Output Power	1200 W
Frequency	ISA 300Ti, 500Ti and 800Ti: Direct outputs: -3 dB @ 50 Hz, -0.5 dB @ 20 kHz; XF outputs: 50 Hz–16 kHz, +1/-3 dB
Woofer Size	-
Weight	12.97 Kg
