Lumens VC-A60S SDI 30x Optical Zoom Full HD 1080p PTZ Video Camera

The Lumens VC-A60S HD Pan/Tilt/Zoom (PTZ) camera is equipped with a professional 1/2.8 inch image sensor with Full HD 1080p output resolution and a high dynamic image quality of 60 frames per second.The superior 30x optical zoom lens with professional noise reduction and wide dynamic range technology delivers a clear image even in low light, backlight or the extreme contrast of brightness and darkness in a room. The camera utilizes a highly efficient DC motor servo controller to achieve high-speed, quiet and precise positioning movements.The Lumens VC-A60S supports 3G-SDI, DVI, component and C-Video interfaces allowing four simultaneous image outputs with the best possible image quality and is compatible with all types of video equipment. The Lumens VC-A60S is applicable for lecture capture, video conferencing and broadcasting systems.

128 Preset Position

Up to 128 preset settings for pan, tilt, zoom, focus, exposure and white balance modes make video conferencing effective and efficient.

Image Flipping

Built-in image flip and mirror function allows various installations on a desktop or wall mount depending on the users preference.

Image Quality

Equipped with a professional 1/2.8 inch image sensor with Full HD 1080p output resolution providing high color reproduction, high definition, and a crystal-clear image.

Advanced Image Processing Technology

The advanced AF/AE/AWB algorithm and circuit design ensures a pristine image during the pan, tilt, zoom & capture function.

3G-SGI Interface

Supports 3G-SDI standard interface for transmitting uncompressed digital video signal without any delay, and the transmission distance is up to 150 meters.

Multi Signal Formats

Lumens VC-A60S is able to switch video output formats from NTSC/PAL, SD, to Full HD for compatibility in various display devices.

Some of its features are.

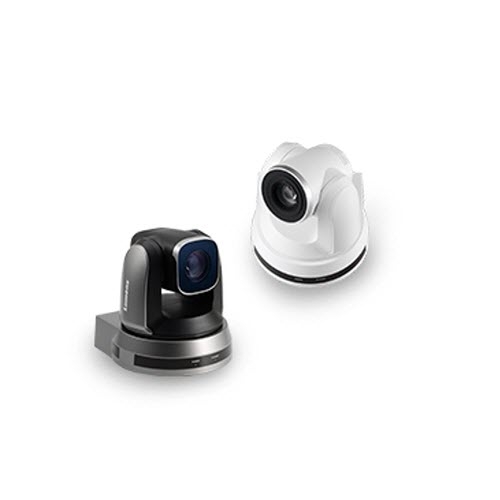

• Dual color option for different kinds of settings
• With professional noise reduction technology a clear image is delivered
• Supports Wide Dynamic Range (WDR) to provide a vivid image even under backlighting
• Full HD 1080p with 60 frames per second
• 360 times variable zoom ratio (30x optical zoom with 12x digital zoom)
• Supports manual white balance function for a complex lighting environment
• 3G-SDI, DVI, Component, C-Video image output synchronously
• Maximum horizontal/ vertical speed of rotation: 300°/ sec
• Wide Pan/ Tilt/ Zoom mechanism: , Horizontal viewing angle: -170° to +170°, Tilting angle up to 90°, and down to -30°
• Compatible with major video conferencing and lecture capture codec
