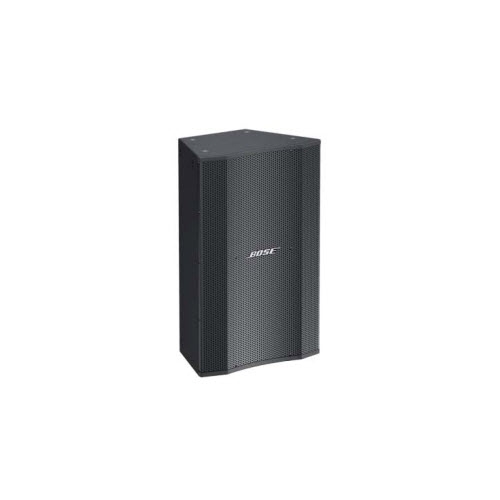

Bose Panaray LT 4402 Series III Mid/High-Frequency Loudspeaker

The Bose Panaray LT 4402 III loudspeaker is a mid/high-frequency device designed for medium-to-long throw distances. The LT 4402-III loudspeaker offers a 44˚ horizontal by 38˚ vertical dispersion pattern which is well suited for highly reverberant spaces.

When arrayed correctly, LT 4402-III loudspeakers behave sonically as a large, single source of sound energy. This coherent wavefront provides full fidelity and even coverage at critical mid and high frequencies throughout the coverage area of the array.

Each Panaray LT 4402-III loudspeaker uses two V2 mid-frequency drivers and a 1.4″ compression driver mounted on a 40 ˚H x 40 ˚ V constant directivity waveguide.

The LT 4402-III loudspeaker can be operated in passive or bi-amplified mode.

In passive mode, the internal passive crossover network is utilized, and a single amplified signal is connected to the loudspeaker.

In bi-amplified mode, the mid-frequency and high-frequency drivers are accessed through separate pins on the Neutrik NL4 connectors.

The 10-ply, marine-grade Baltic birch enclosure has sixteen threaded inserts, four each on the top, bottom and sides. Each hang point will accept standard SAE 3 /8 – 16 rigging hardware.
